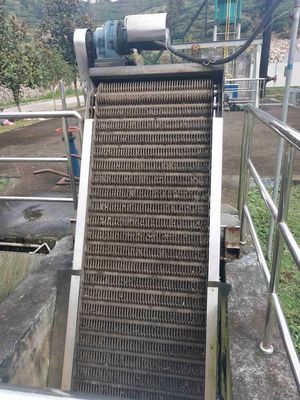

Stainless Steel Mechanical Bar Screen 3.0KW for Sewage Treatment

Inner-Flow Fine Mechanical Bar Screen | Stainless Steel (Color Optional) | Automatic Operation

Company Profile
Longdai Co., Ltd., headquartered in Yixing, Jiangsu Province, China, is a specialized supplier of processing equipment for the petrochemical and environmental sectors. The company integrates independent R&D, design, engineering, manufacturing, and material supply to deliver comprehensive environmental protection solutions.

Application
This inner-flow fine screen is an advanced mechanical cleaning system designed for continuous interception and removal of solid debris from fluids. It effectively captures flat solids, weeds, fruit shells, and—most notably—hair and fibrous contaminants that are difficult to remove with traditional fine screens. Its high efficiency significantly reduces the load on downstream treatment processes.

Technical Specifications

• Operation: Fully Automatic

• Width & Depth: Customizable

• Power: 0.55–3.0 kW

• Motor: Domestic or Imported Options

• Electrical Components: Schneider/Omron/Siemens

• Warranty: 1 Year

• After-Sales Service: Technical Engineers Available

Structure & Working Principle
Wastewater enters vertically through the center of the screen and flows outward through perforated screens on both sides. Debris retained on the inner surface is lifted to the discharge zone as the screen rotates. A high-pressure washing system cleans the screen and flushes residues into an integrated collection hopper. The waste is then conveyed to subsequent treatment stages, completing a continuous and automated cleaning cycle.

The system comprises a main frame, rotating screen and chain, drive unit, slag collection tank, backwash system, and automatic control panel.

Key Features

• Large effective screening area with high contaminant retention rate

• Vertical installation saves footprint and simplifies integration

• Stable operation with anti-overload protection

• Effectively avoids clogging from fibers and hairs

• Equipped with rotating brushes and flushing mechanism for thorough cleaning

• Anti-wear, low-friction screen surface resists blockage and is easy to clean

• Fully automatic control via timer or liquid level differential sensing

Packing and Delivery

1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.

FAQ:

Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.

Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service

Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
