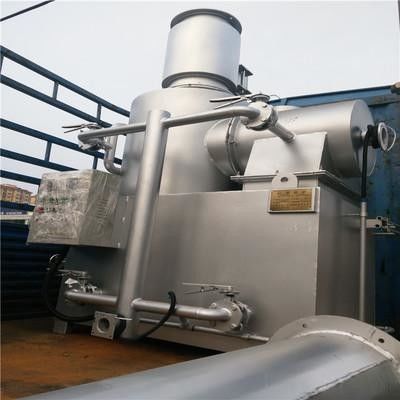

High-Temperature Integrated Waste Incinerator for Medical, Domestic & Animal Waste Disposal
While we prioritize functional excellence over aesthetic embellishment, our expertise lies in engineering robust wastewater treatment and waste incineration solutions. We welcome your technical inquiries and are committed to providing detailed responses within 24 hours.
Our incineration systems are engineered for complete waste disposal, combining high-temperature combustion with advanced gas treatment to ensure environmentally compliant operations.
Primary & Secondary Combustion Chambers – Ensure complete waste breakdown and gas reburning.
Cyclone Dust Collector – Captures particulate matter from flue gases.
Flue Gas Piping System – Channels emissions through treatment stages.
High-Pressure Blower & Induced Draft Fan – Maintain optimal airflow and combustion efficiency.
Automated Control Cabinet – Integrates temperature monitoring, diagnostics, and operational controls.
| Model | Dimensions (L×W×H mm) | Capacity (kg/batch) | Chamber Volume (m³) | Power (kW/h) | Fuel Consumption (L/h) | Weight (t) |
|---|---|---|---|---|---|---|
| ZTFS-20-40 | 1200×1300×1800 | 20–40 | 3.0 | 2–4 | 3–8 | 2.2–5.5 |
| ZTFS-20-60 | 1700×1500×2100 | 20–60 | 5.0 | 2–5 | 3–10 | 4.5–7.8 |
| ZTFS-50-120 | 2200×2000×2500 | 50–120 | 10.0 | 3–12 | 4–15 | 5.0–11.5 |
| ZTFS-100-300 | 3000×3500×2900 | 100–300 | 13.0 | 10–30 | 10–40 | 15–25 |
| ZTFS-400-500 | 3000×3700×3200 | 400–500 | 17.0 | 40–50 | 50–60 | 30–45 |
Our incinerators are designed for the无害化处理 (harmless disposal) of:
Medical waste (infectious materials, sharps, pharmaceuticals)
Domestic refuse
Animal carcasses
Waste Loading – Automated or manual feeding into the primary chamber.
Primary Combustion – Waste is ignited at 800–1000°C, reducing it to ash and gases.
Secondary Combustion – Gases are reburned at higher temperatures (≥1100°C) to eliminate toxins.
Gas Treatment – Emissions pass through a cyclone dust collector to remove particulates.
Final Discharge – Treated gases are released via the chimney, complying with environmental standards.
Waste pre-treatment (shredding, drying)
Incineration combustion management
Smoke bio-filtration and dust removal
Automated control and monitoring
High-Temperature Efficiency – Ensures complete waste breakdown and pathogen destruction.
Multi-Waste Compatibility – Handles medical, domestic, and animal waste seamlessly.
Environmentally Compliant – Advanced filtration minimizes particulate and gaseous emissions.
Automated Operation – Reduced manual intervention with PLC-based controls.
Durable Construction – Carbon steel design withstands high thermal stress.
Customizable capacity based on waste volume and type.
Compact design with optional mobile configurations.
Compliance with international emission standards (e.g., EPA, EU directives).
Turnkey installation and technical support.
Combustion process and brief description:
The waste is manually put into the primary combustion chamber of the furnace body, and the automatic temperature control starts the primary combustion. According to the principle of combustion three T (temperature, time, vortex), it is fully oxidized, pyrolyzed and burned in the furnace body combustion chamber. The flue gas produced by incineration enters the second combustion chamber, and the unburned harmful substances in the flue gas are further destroyed in the second combustion chamber. In order to completely decompose the unburned embers and meet the emission requirements, the second combustion chamber is equipped with a burner to assist combustion, and is equipped with a unique secondary air supply device to ensure that the flue gas is in full contact with oxygen at high temperatures, and at the same time to ensure that the flue gas is in the second combustion chamber. The residence time of the combustion chamber is adjusted according to the oxygen content of the flue gas at the outlet of the second combustion chamber. The temperature in the second combustion chamber is controlled and the larger particles are removed by the dust collector, so that the incineration efficiency and destruction removal rate can reach more than 99%, so that it can achieve the effect of no odor, no odor and smoke, and reach the national emission standard. It enters the chimney and is discharged into the atmosphere, and the ashes produced after combustion are manually taken out, screened, transferred and buried.
